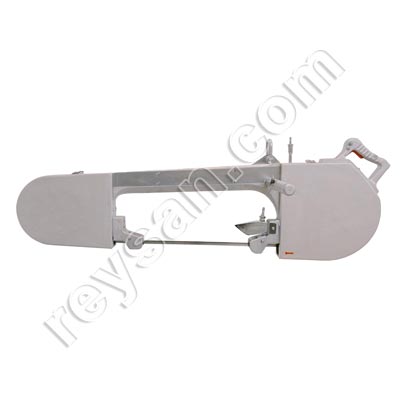

SM-3000 splitter-bandsaw for cutting in the meat industry, especially for pigs and in cutting line, whose cutting system is by endless band. This belt is cleaned and cooled through water jets oriented towards it. It allows great freedom of movement, perpendicular and parallel to the cutting line, thanks to a support in which the counterweight equipment, made up of tubes and rollers, is connected.
Equipped with a properly regulated tensioner that facilitates handling, it also has a watertight control cabinet with ventilation, general switch, emergency stop and luminous voltage indicators (start and stop of the thermal relay) in which the control, protection and transformer equipment are located.
The movement is activated by means of the maintained pressure of two pushbuttons located respectively in the two handles (EN-574). In addition, it is equipped with a safety system on the drive pulley cover that prevents the saw from starting to run if the cover is not closed.
Characteristics
- Weight: 43 kg.
- Input voltage: 220/380 V.
- Operating equipment and motor voltage: 48 V.
- Intensity: 40 A.
- Power: 2 kw.
- Rpm: 1500.
- Armoured motor:
- Tensor (NOT INCLUDED):
- Adjustment range: 48-54 kg.
- Regulation indicated for this machine: 45kg.

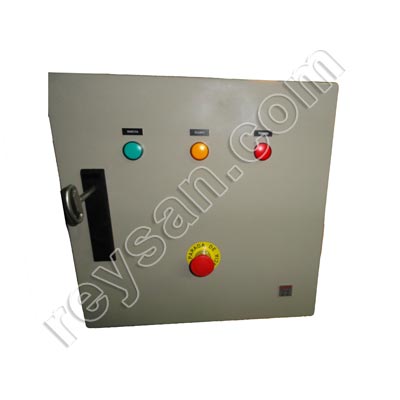

See also CONTROL PANEL FOR SPLITTER-BANDSAWS.
