Analyzer for O2/CO2.
Portable and wireless analyzer for the preventive control of the time of conservation of foods packed under modified atmosphere (MAP).
The ideal instrument for mobile, fast and accurate measurements next to the packaging machine, in the warehouse or in the laboratory.
The economical alternative to table-top measuring equipment.
By means of a mobile control of their packages they assure a constant quality of freshness of their products (HACCP).
It also allows you to establish lasting relationships with your customers.

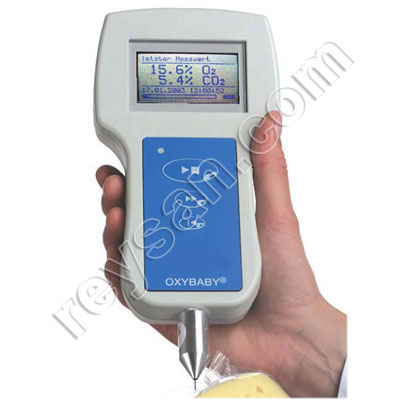

Characteristics of OXYBABY M+ O2/CO2 GAS ANALYSER
The ideal measuring device for container control:
- Requires a minimum amount of measuring gas.
- Suitable for even the smallest containers with protective atmospheres.
With integrated data memory for the latest measurements and product management.
Advantages
- Precise minimum quantities of analysis gas, suitable for very small containers.
- Wireless, rechargeable battery operation.
- Simple operation with just one hand.
- Easy to clean surface.
- Large illuminated graphic display with good legibility.
- Languages available: German, English, French, Italian, Dutch, Swedish, Finnish, Spanish, Polish, Japanese and Russian.
- Integrated needle protection for user protection.
Complete content (briefcase included)
- Charger and power supply.
- CD-ROM with: detailed instruction manual.
- 2 spare needles.
- Easy to clean surface.
- 2 spare filters.
- 100 self-adhesive sealing pads.
- Case dimensions (WxHxD): approx. 325 x 385 x 115 mm.
- Case weight (incl. contents): approx. 1.7 kg.
Technical data
| Measuring mode O2 |
electro-chemical cell |
| Measuring mode CO2 |
IR absorption |
| Service life O2 |
approx. 2 years (in air) |
| Service life CO2 |
Unlimited |
| Measuring range |
0-100 %; in units of 0,1 % |
| Required analysis gas |
Upper 10 ml. |
| Response time |
max. 10 seconds |
| Calibration |
easy 2-point |
| Sampling |
Automatic sampling by means of a needle with integrated pump |
| Data memory |
Circular memory for 100 measurements. Allocation of measured values to different products |
| Multilingual |
German, English, French, Italian, Dutch, Swedish, Finnish, Spanish, Polish, Japanese and Russian |
| Temperature (gas/ambient) |
5 - 40 ºC |
| Display |
illuminated background |
| Automatic shutdown |
after 2 minutes of inactivity |
| Housing |
Shock-resistant PVC |
| Weight |
Approx. 600 g. (without accessories) |
| Dimensions (WxHxD) |
187 x 106 x 91 mm. (without needle) |
| Power supply |
2 built-in rechargeable batteries (incl. charger + power supply) |
| Charger |
110 - 240 VAC |
| Standards / manufacturing regulations |
Company certified according to ISO 9001 and ISO 22000
CE marking according to:
- EMV 2004/108/CE
- Low Voltage Directive 2006/95/CE
- Suitable for use with gases for the food industry according to Regulation (EC) No 1935/2004 |
