Monogas detection equipment. Rapidly and accurately measures concentrations of carbon monoxide (CO), hydrogen sulphide (H2S), sulphur dioxide (SO2) or oxygen (O2). The sensor's fast response times and powerful battery also ensure safety.
The powerful sensors, with a very low T90 response time, guarantee a fast reaction. The versatility of the 6500 lies in its wide measuring range. Thus, the CO sensor measures concentrations from 1 to 1,999 ppm, and the H2S sensor measures concentrations from 0.4 to 100 ppm.
Designed with a robust housing with practical design for the most adverse conditions.

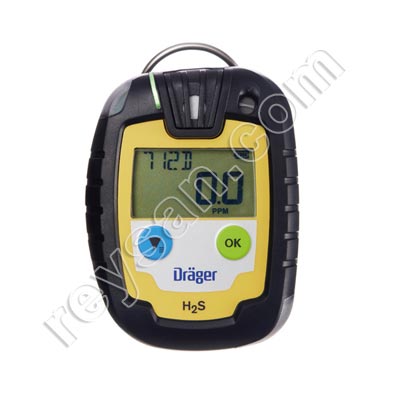

Features of DRÄGER 6500 MONITOR
- It has a crocodile clip seal that allows easy clamping.
- Signal light D indicates that the device has been tested and is ready for use.
- Easily replaceable membrane filter for sensor protection.
- Alarm signal 360° easily detectable from any angle.
Technical Specifications
- Dimensions without clamp (W x H x D): 64 x 84 x 20 mm.
- Battery life: min. 2 years (O2 sensor min. 12 months).
- Protection class: IP68.
- Atmospheric pressure: 700 to 1300 hPa.
- Air humidity: 10 to 90 % relative humidity, non-condensing.
- Temperature -30 ºC to 55 ºC (briefly up to -40 °C for 1 h, depending on the sensor).
- Approvals: cCSAus, IECEx, ATEX, CE.
- Technical data DRÄGER 6500 MONITOR.
- Oxygen (O2)
- Carbon monoxide (CO)
- Sulfhydric acid (H2S)
