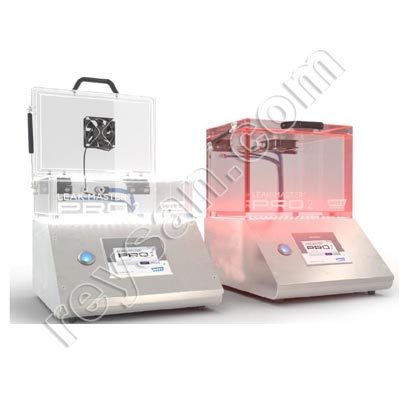

Reliable detection of leaks in containers
System for the detection of leaks in containers based on CO. It enables non-destructive detection of even the smallest leaks without the need to use expensive helium as a tracer gas.
Using a Venturi nozzle and actuated by compressed air (also available with electric pump), the vacuum is generated to verify that there is no type of leak.
Characteristics of the container leak detector
- Stainless steel and acrylic glass housing. IP 54 in closed chamber.
- Suitable for food gases according to Regulation (CE) Nº1935/2004.
- Chamber dimensions: 42 x 310 x 200.
- Case dimensions: 316 x 364 x 405.
- Weight: 20 Kg.
- Voltage: 100 – 230V; 50-ndash; 60Hz; 50W.
- Attention! The equipment is not suitable for testing packages that have a high concentration of oxygen >20.9% (fresh meat).< /li>
- See technical sheet.
In addition, thanks to the fact that it has LED lighting inside its chamber that classifies the state of the container by color, it allows you to easily recognize whether it has a leak or is damaged. properly airtight.
Advantages of the container leak detector
- LED illumination of the chamber to visualize the state of the container: Blue color means that it is ready. measuring, red color means that there is a leak and green color means that the container is OK.
- Fast testing thanks to excellent response time.
- Quick change of product.
- Ideal for flexible and rigid packaging.
- Long useful life and little maintenance.
- No calibration required.
- Standardized and user-independent testing process.
- Easy entry of data and process parameters via integrated keyboard or by computer.
- Easy and intuitive handling; no need for trained personnel.
- Comfortable data management and evaluation for customer-oriented quality documentation.
- Different camera sizes (see back).
- Easy installation and commissioning.
- Splash-proof stainless steel and acrylic chamber for easy cleaning.
- Transmission of measurement data via Ethernet.
Optional accessories
- Waterproof barcode reader for quick and easy user and product selection.
- Electric vacuum pump.
- GASCONTROL CENTER: Software for data processing (including connection cable).
